Description
DO35 – V3PLUS (WITH HANDBRAKE)

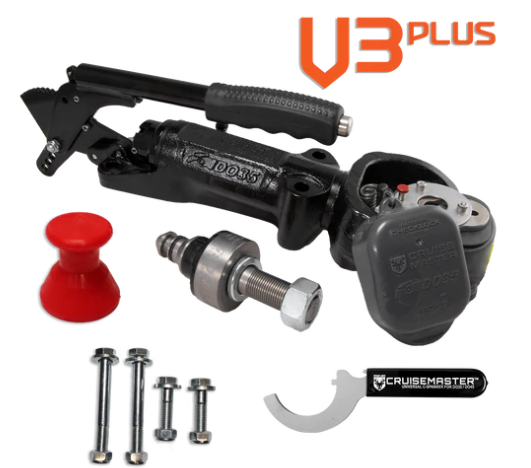

TEM INCLUDES
- DO35 V3Plus w/ Handbrake
- Tow Pin 7/8" Shaft
- Tow Pin Cover
- Universal C-Spanner
- Fitment Bolts
- User Guide
The Adventure Continues with the DO35 V3Plus, taking you further than other couplings!
V3PLUS EXCLUSIVE FEATURES
- Patented “Check lock” Gen.2 Dust Cap & Bumper for an easy, secure seal
- Improved Bumper molding gives the from reflector strip improved staying power
- Rear support webbing allows for mounting upside down on the underside of the drawbar
STANDARD V3 FEATURES
- 2 Stage ADR compliant locking mechanism
- Low profile Bumper & Cap for impressive clearance
- High articulation for improved handling off-road and on unmaintained roads
- Available with or without handbrake
- Suitable for use with most Weight Distribution System’s
- Forged Yoke and Rear Nut for added strength
- Exceeds ADR 62/01 and 62/02 strength requirements
- One piece light weight Cast Housing
- Standard Aus bolt pattern for easy fitment
- 7/8” shaft to fit most std. tow tongues
- Improved towing safety
- Combination of zn-ni and e-coat for superior corrosion protection
- Greaseable Bushes for easy maintenance and noise free towing
- No tow ball height restrictions
- R.A.T Run Tested and Proven
ARTICULATION: 360 degrees axial, minimum 70 degrees other axes.
LOCKING: Fully ADR 62/02 compliant including automatic secondary lock
BOLT PATTERN: 4 bolts at 185mm x 54mmRATING:3.5 Tonne
ACTION: Drop-On
