Description

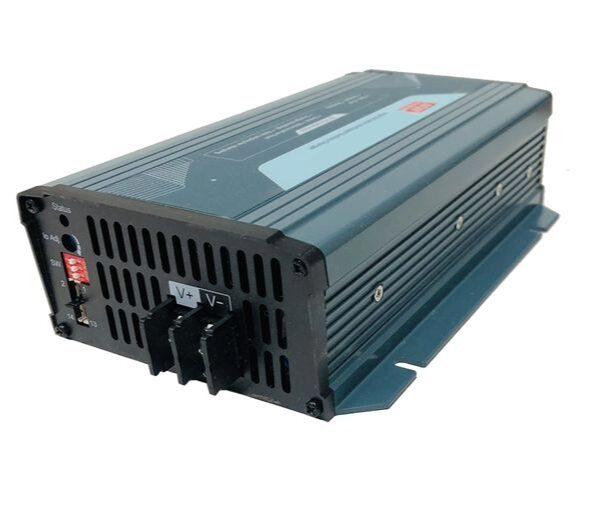

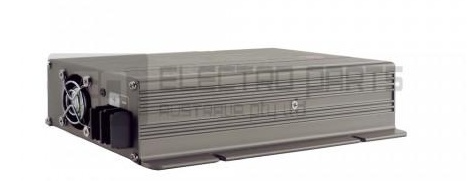

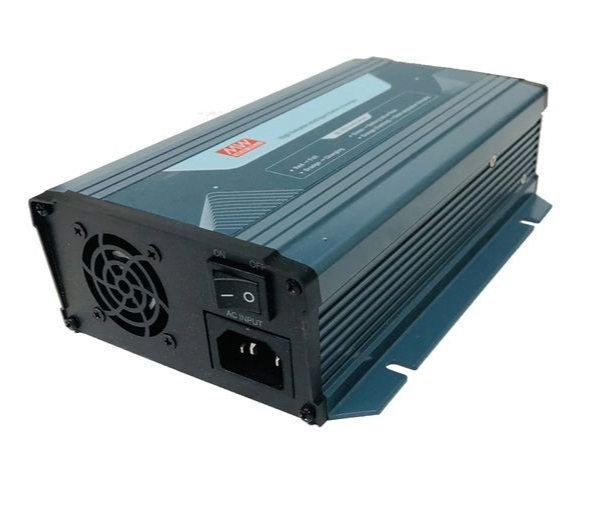

Battery Charger 240V-12V (25A) – UPDATED MODEL
FEATURES
- Suitable for lead-acid (Pb) and li-ion batteries
- Auto ranging with ultra-wide charging voltage (10.5V~21V)
- Built-in CANBus protocol for control, setting and monitoring
- Programmable charging curve via optional adaptor
- Manual setting for 2/3 stage and 4 built-in charging curves via DIP switches
- Multiple protections:
- Short circuit
- Over voltage
- Over temperature
- Battery under voltage
- Reverse polarity
- Charger OK and Battery Full signal
- Temperature compensation function to prolong battery lifer (Lead-acid only)
- -30C ~+70C wide operating temperature
- Thermal controlled DC fan for noise reduction
- Remote ON/OFF control
- Complies with 62368-1 & 60335-1:2.29
- 3 Year warranty
- Brand: Mean Well
- Dimensions: 205x135x55
- Weight: 1.02
- Warranty Information: 36 Months
