Description

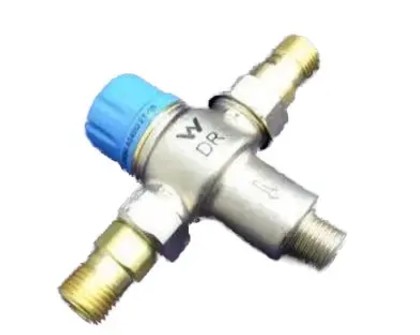

TV15 1/2 Male Tempering Valve (LF= Lead Free) TV15J
TV15 1/2in Male Tempering Valve are used in the process of mixing hot and cold water to deliver tempered water at a continuous temperature throughout a hot water system. The valve is appropriate for tempering the hot water to supply outlets used for personal hygiene purposes where the outlet temperature must not exceed the maximum of 50°C.
- Cold Water Supply Temperature: 5 °C – 30 °C
- Hot Water Supply Temperature: 60 °C – 90 °C
- Set temperature: 50 °C standard (must be commissioned on site by installer)
- Accuracy of Outlet Temperature: ± 3 °C (as per AS4032.2)
- Maximum Working Pressure (Static): 1400 kPa
- Maximum Working Pressure (Dynamic): 500 kPa
- Minimum Flow Rate: 3.6 L/min under outlet pressure 10 kPa
